Current transformers narrow section

TC5 40/5A

Current transformers narrow section

M70311.

TC5 40/5A, Current transformers narrow section; Flat strip(mm): 20 x 10 |25 x 5 |15 x 5; System: Single-phase; Class 3 Power (VA): 1,5; Measurement Range (A): 40/5; Input current: 40 A; Transformer type: Closed core

TC5 50/5A

Current transformers narrow section

M70312.

TC5 50/5A, Current transformers narrow section; Flat strip(mm): 20 x 10 |25 x 5 |15 x 5; System: Single-phase; Class 3 Power (VA): 2,5; Measurement Range (A): 50/5; Input current: 50 A; Transformer type: Closed core

TC5 60/5A

Current transformers narrow section

M70313.

TC5 60/5A, Current transformers narrow section; Flat strip(mm): 20 x 10 |25 x 5 |15 x 5; System: Single-phase; Class 1 Power (VA): 1,25; Class 3 Power (VA): 3,5; Measurement Range (A): 60/5; Input current: 60 A; Transformer type: Closed core

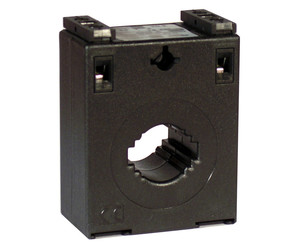

TC5 75/5A

Current transformers narrow section

M70314.

TC5 75/5A, Current transformers narrow section; Flat strip(mm): 20 x 10 |25 x 5 |15 x 5; System: Single-phase; Class 1 Power (VA): 2; Class 3 Power (VA): 3,5; Measurement Range (A): 75/5; Input current: 75 A; Transformer type: Closed core

TC5 100/5A

Current transformers narrow section

M70315.

TC5 100/5A, Current transformers narrow section; Flat strip(mm): 20 x 10 |25 x 5 |15 x 5; System: Single-phase; Class 0,5 Power (VA): 1,5; Class 1 Power (VA): 2,5; Class 3 Power (VA): 3,75; Measurement Range (A): 100/5; Input current: 100 A; Transformer type: Closed core

TC5 125/5A

Current transformers narrow section

M70316.

TC5 125/5A, Current transformers narrow section; Flat strip(mm): 20 x 10 |25 x 5 |15 x 5; System: Single-phase; Class 0,5 Power (VA): 1,75; Class 1 Power (VA): 3,5; Class 3 Power (VA): 5; Measurement Range (A): 125/5; Input current: 125 A; Transformer type: Closed core

TC5 150/5A

Current transformers narrow section

M70317.

TC5 150/5A, Current transformers narrow section; Flat strip(mm): 20 x 10 |25 x 5 |15 x 5; System: Single-phase; Class 0,5 Power (VA): 2,5; Class 1 Power (VA): 3,5; Class 3 Power (VA): 5; Measurement Range (A): 150/5; Input current: 150 A; Transformer type: Closed core

TC5 200/5A

Current transformers narrow section

M70318.

TC5 200/5A, Current transformers narrow section; Flat strip(mm): 20 x 10 |25 x 5 |15 x 5; System: Single-phase; Class 0,5 Power (VA): 3,75; Class 1 Power (VA): 5; Class 3 Power (VA): 5; Measurement Range (A): 200/5; Input current: 200 A; Transformer type: Closed core

TC5 250/5A

Current transformers narrow section

M70319.

TC5 250/5A, Current transformers narrow section; Flat strip(mm): 20 x 10 |25 x 5 |15 x 5; System: Single-phase; Class 0,5 Power (VA): 5; Class 1 Power (VA): 7,5; Class 3 Power (VA): 7,5; Measurement Range (A): 250/5; Input current: 250 A; Transformer type: Closed core
